ST3P Power Delay Version Time Limit Multi Range Time Delay Relay Wholesale

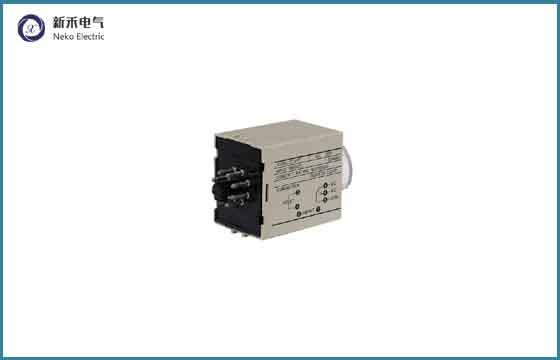

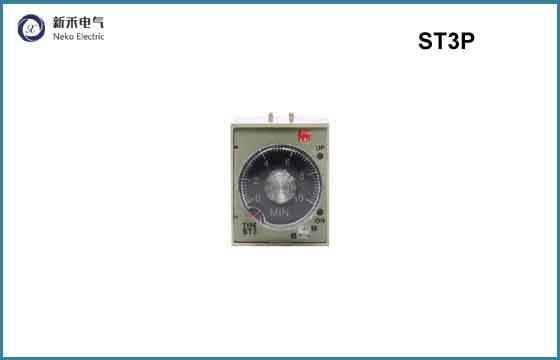

The ST3P series Multi-range analogue timer is a time-limited type of timer. It have a variety of time setting ranges and voltages you can choose, it mainly used for equipment control.
Description:
- Multi-range analogue timer
- Customized CMOS IC for low power consumption, high operation stability and extreme timing accuracy
- 7(A, B, C, D, E, F, G)timing series available
- Output Contacts rated 5A at 120/240VAC and 30VDC,resistive load.
- Socket mounted with a PF083A/PS-08 Socket
- Two delayed contact (DPDT Relay) Output
Product Selection
| Type |
Output contact |
Time range |
| ST3P-A |
2C |
A:0.05-0.5S / 5S / 30S / 3M
B:0.1-1S / 10S / 60S / 6M
C:0.5-5S / 50S / 5M / 30M
D:1-10S / 100S / 10M / 60M
E:5S-1M / 10M / 60M /1 H
F:0.25-2M / 20M / 2H / 12H
G:0.5-4M / 40M / 4H / 24H
|
| ST3P-C |
1A1C |
Technical Data
| Product Type |
ST3P |
| Operating voltage |
24 - 240 VAC/DC |
| DC(V):12,24,48 |
| AC(V):12 24 110 220 |
| Allowable operating voltage range |
85~110% of rated operating voltage |
| Rated frequency |
50/60Hz |
| Indicator operating |
ON-UP Operating |
| Contact rating |
250VAC 5A (resistive load) |
| Life |
Mechanical 5×107times |
| Electrical 1×105times |
| Accuracy |
Repeat error ±1.0%max |
| Setting error ±10.0%max |
| Voltage error ±1.0%max |
| Temperature error ±2.0%max |
| Reset time |
Max 0.5sec |
| Insulation resistance |
100MΩ(DC 500V)min |
| Dielectric strength |
1500VAC |
| Power consumption |
2VA |
| Ambient temperature |
-10℃~+55℃ |
| Ambient humidity |
35~85%RH |
| Mounting /Socket |
Surface(-N) PF083A(E) |
| Flush(-Y): US-08 / P3G-08 |
| Weight |
100g |
| Dimensions |
55H×40.5W×57.5D |
