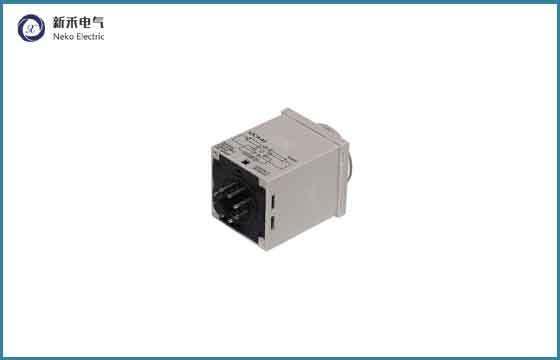

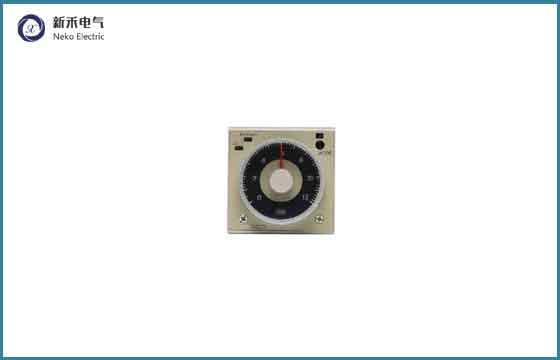

H3CR-A8 240VAC Low Power electrical multi range analogue time relay
The H3CR series Multi-range analogue timer is a time-limited type of timer. It have a variety of time setting ranges and voltages you can choose, it mainly used for equipment control.
Description
- Multi-range analogue timer
- Time setting range of 0.5s to 300h
- Wide operating voltage range in a single unit
- Output Contacts rated 5A at 120/240 VAC and 30 VDC, resistive load.
- 8 field-selectable output modes for various applications
-14 field-selectable time range, from 0.2 second to 300 hour
- Includes 2C output contacts, instantaneous output contact, flicker and interval modes
- Timing LED Indicates Output Relay Status
Product selection
| Type |
Mounting/Socket |
Output contact |
Time range |
| H3CR-A |
Surface(-N): PS-08
Flush(-Y): US-08 P3G-08
|
2c |
0.5Seconds-300Hours |
| H3CR-A8 |
Surface(-N): PF-113A(E)
Flush(-Y): US-11
|
Technical Data
| Type |
H3CR |
| Operating voltage |
100-240VAC / 100-125VDC |
| 24-48VDC / 12-48VDC |
| DC(V):12,24 |
| AC(V):110,220 |
| Allowable operating voltage range |
85~110% of rated operating voltage |
| Rated frequency |
50/60Hz |
| Indicator operating |
Time operating flicker |
| Contact rating |
250VAC 5A (resistive load) |
| Life |
Mechanical 5×107times |
| Electrical 1×105times |
| Accuracy |
Repeat error ±1.0%max |
| Setting error ±5.0%max |
| Voltage error ±1.0%max |
| Temperature error ±2.0%max |
| Reset time |
Max 0.5sec |
| Insulation resistance |
100MΩ(DC 500V)min |
| Dielectric strength |
1500VAC |
| Power consumption |
100-240VAC:1VA / 12VDC,24-240VDC:1.5W |
| Ambient temperature |
-10℃~+55℃ |
| Ambient humidity |
35~85%RH |
| Weight |
100g |
| Dimensions |
48H×48W×81.6D |
